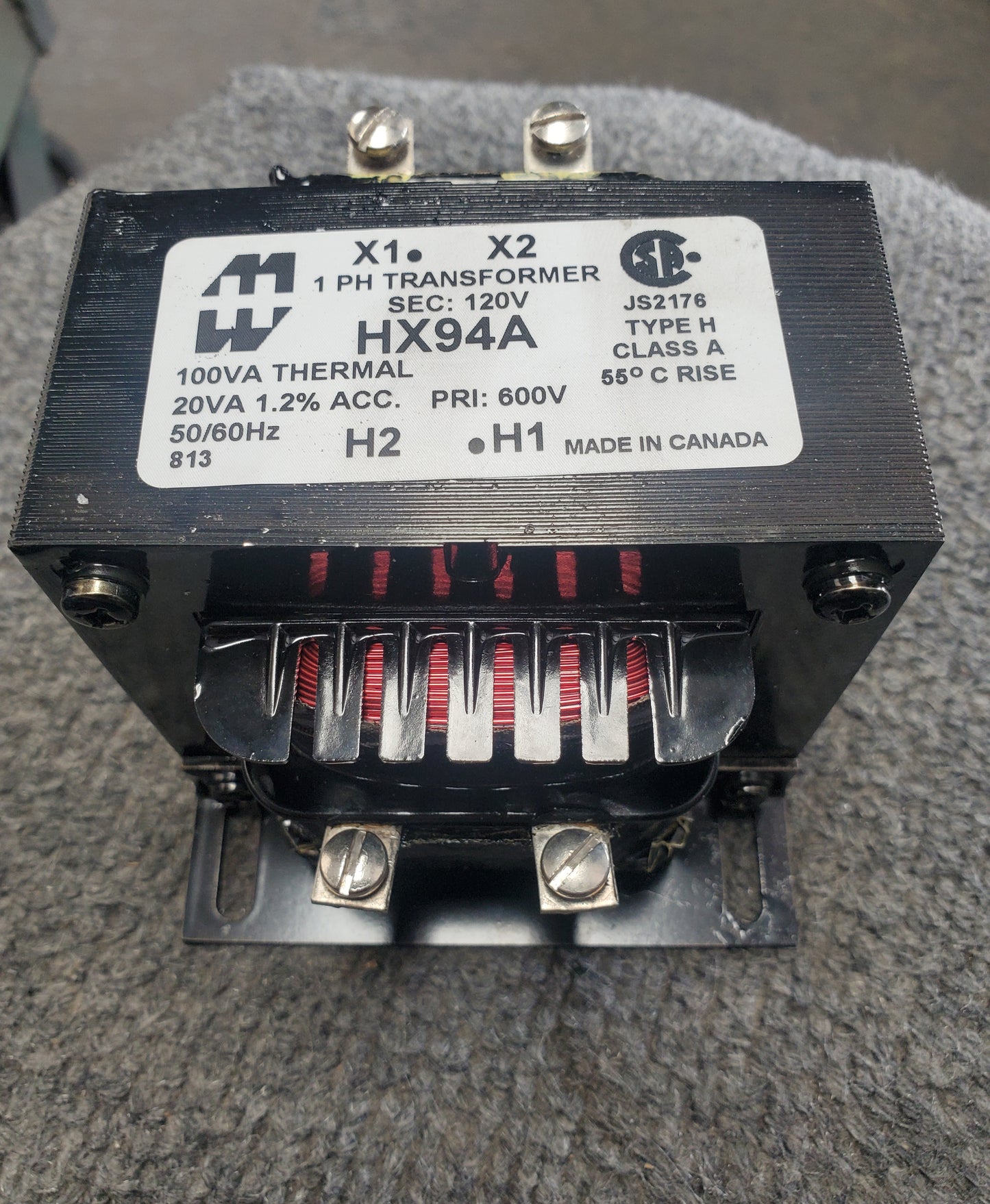

Hx94A Potential Transformer, Instrument, 600V, Ratio 600:120, Hx Series

Potential transformer, instrument, 600V, ratio 600:120, HX series

• Used (with 150 Volt full scale A.C. voltmeters) to measure the voltage of 240, 480 or 600 VAC systems.
• Primary insulated for 4.0 KV rms test, suitable for L.V. switchgear and motor control use.
• 50/60 Hz. operation.
• Open construction - "Type H".
• CSA certified (209651).
• The nominal line voltages of 240 and 480 volts may be exceeded by 25% for 60 Hz. operation.
• Insulation system 55 degree C rise, Class 105.
