Gould Shawmut

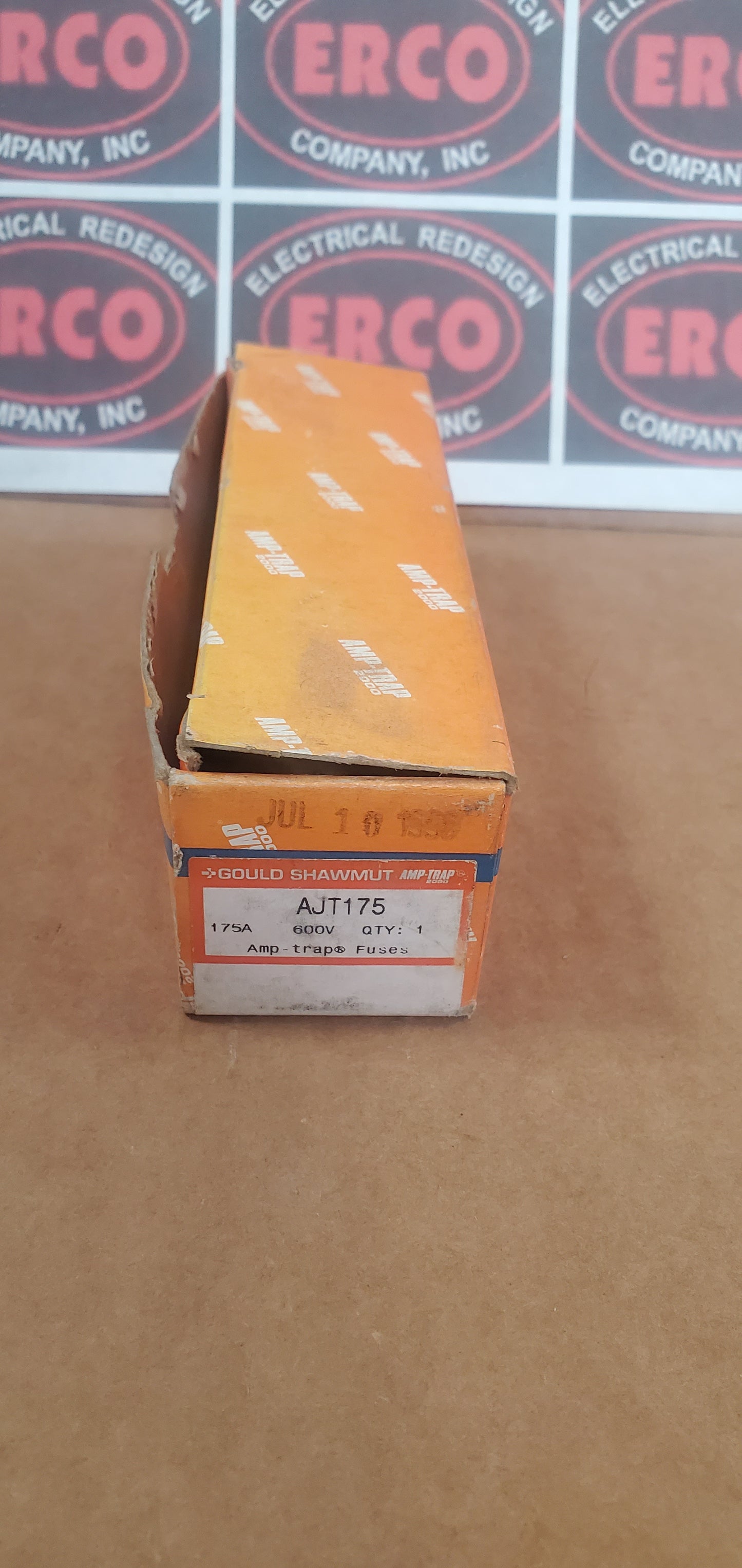

Mersen AJT175

Mersen AJT175

$75.00 USD
$75.00 USD
Sale Sold out

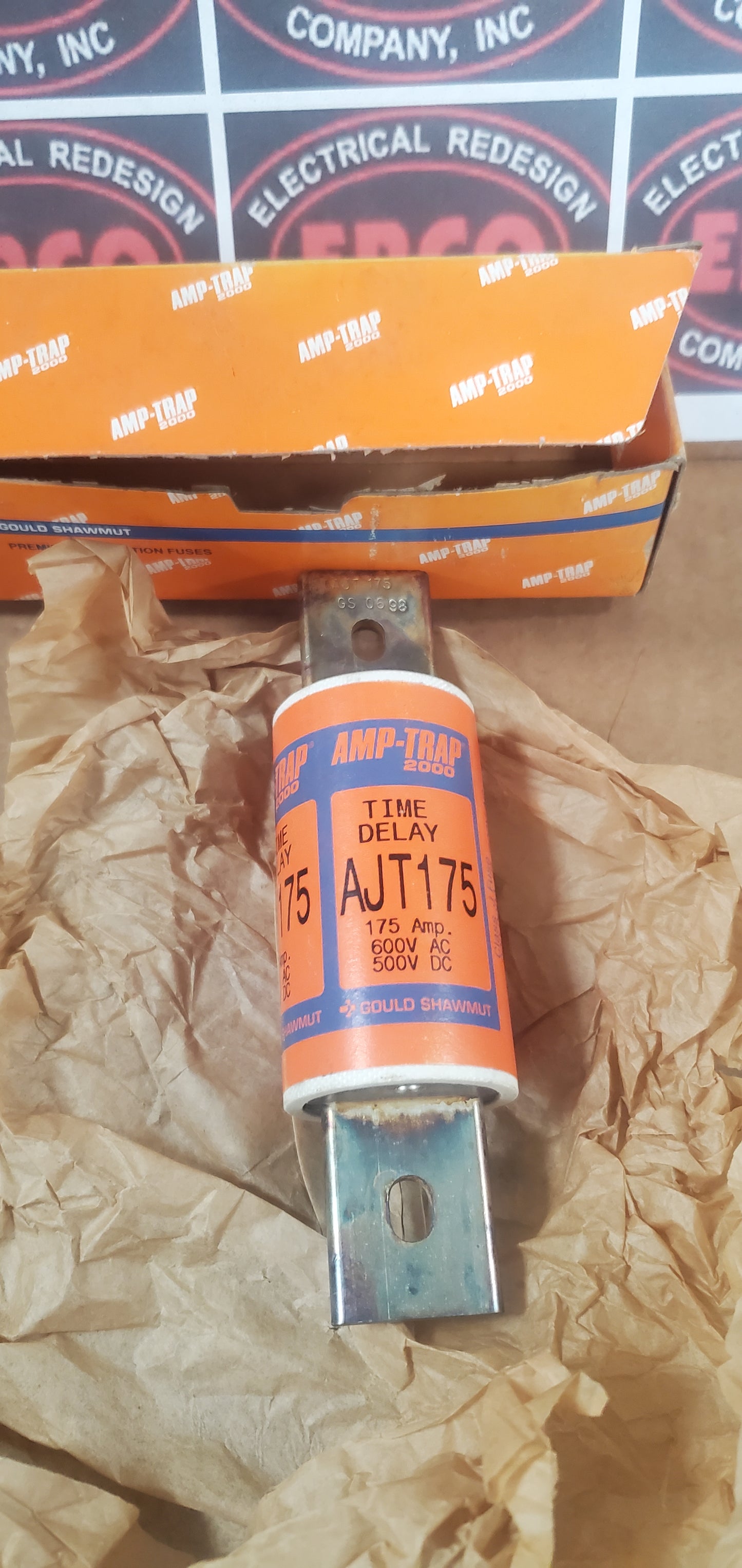

Ferraz Shawmut SmartSpot ; Class J Time-Delay fuse offers a visual open fuse indicator. It is rated at 175 Amps/600 VAC/500VDC. It has an interrupt rating of 200 kilo-Amps at 600 VAC and 100 kilo-Amps at 500 VDC. Fuse offers a time-delay for motor starting and transformer inrush. It features fibreglass body that provides dimensional stability in harsh industrial settings. Fuse is microswitch mountable. It features high-grade silica filler to ensure fast arc quenching.
Features
With Time Delay
Max Voltage                      600 V
Type                                  Cartridge

General

Fuse Type                           Time Delay / Current Limiting
Fuse Class                           J
Mounting                           Type  Blade
Ampere Rating                  175 A
Volt Rating                         600V AC
Overall Length                    5-3/4 in
Diameter                             1.6250 in
Blade Or Ferrule Length      1.3750 in
Blade Height                       1.1250 in
Blade Width                         .1875 in
UL Approvals                        Standard 248-8
CSA Approval                       Standard C22.2 No.248.8
IEC Approval                         Iec 269-2-1
DC Listed UL Approval          Standard 198L
Body Type                            Fiberglass
