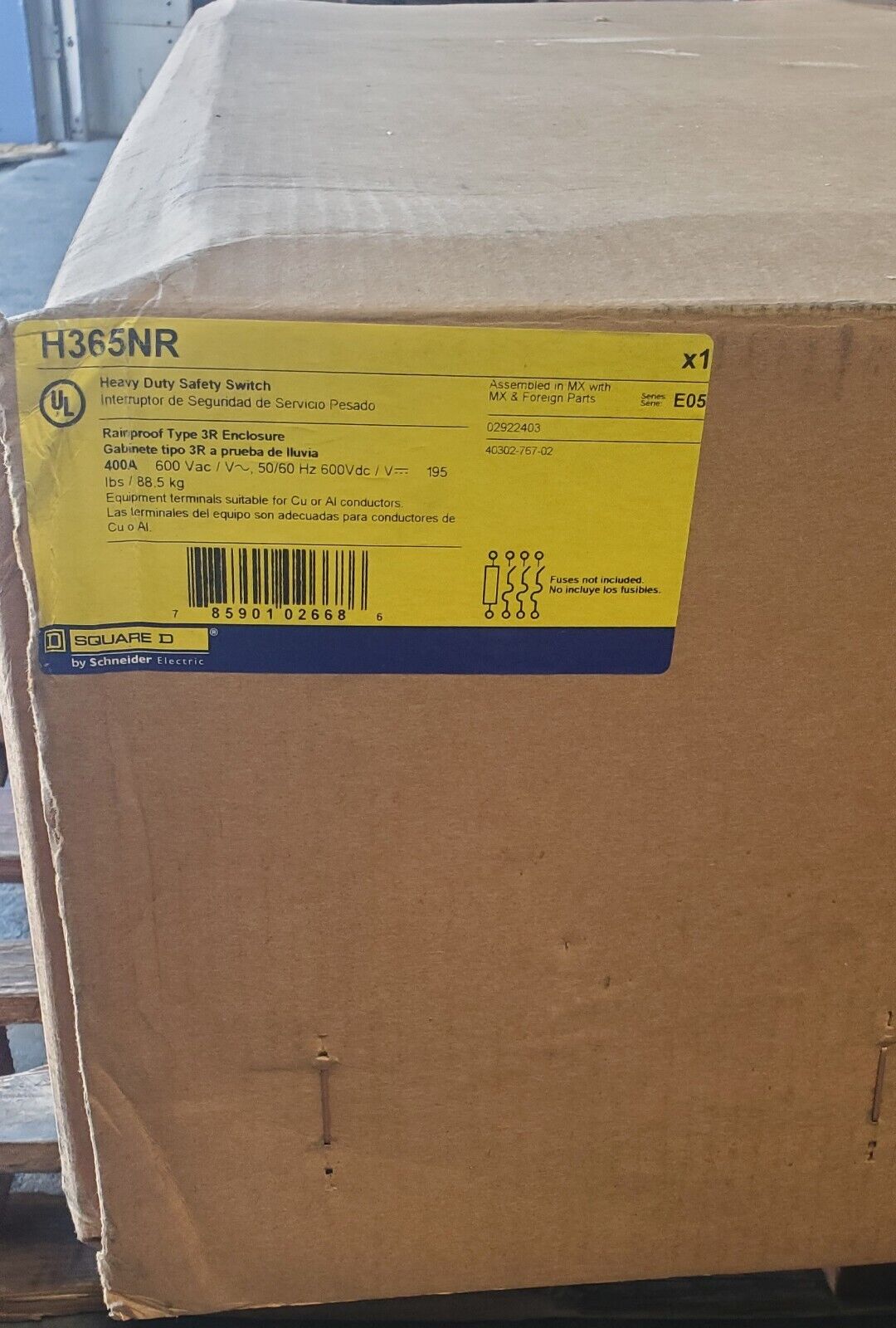

SQUARE D H365NR : SWITCH FUSIBLE HEAVY DUTY 600V 400A 3P NEUTRAL

Name: SQUARE D H365NR : SWITCH FUSIBLE HEAVY DUTY 600V 400A 3P NEUTRAL
Brand: Square D
Price: 4800.0 USD
Availability: OutOfStock

$4,800.00 USD

Sale Sold out

Product variants

Quantity

Number of Wires: 4

Fuse Provision: Fusible

Fuse Type: Class R/J/L/H/K

Neutral Type: Solid

Enclosure: NEMA 3R

Size: 27.88 Inch Width x 9.53 Inch Depth x 50.31 Inch Height

Enclosure Material: Steel

Finish: Galvannealed

Approval: UL

Additional Information: RoHS Compliant; Wire Size 1/0 AWG to 750 KCMIL (Copper/Aluminum)

Catalog Number: H365NR

Model: E4

Type: Heavy Duty Safety

AC Voltage Rating: 600 Volt

DC Voltage Rating: 250/600 Volt

Current Rating: 400 Amp

Power Rating: 100 HP at 480 Volt AC 3-Phase (Standard), 250 HP at 480 Volt AC 3-Phase,

125 HP at 600 Volt AC 3-Phase

(Standard), 350 HP at 600 Volt AC 3-Phase, 50 HP at 250 Volt DC, 50 HP at 600 Volt DC

Number of Poles: 3

CATALOG DESCRIPTION: SAFETY SWITCH, HEAVY DUTY, FUSIBLE, 400A, 4 WIRE, 3 POLES, 1 NEUTRAL, 250HP, 600VAC/DC, TYPE 3R
